CA-IS3082CWX
CA-IS3082CWX
Active
5kVRMS Reinforced Isolated Half-Duplex RS-485 Transceiver
The CA-IS3082/88Cx devices are reinforced isolated RS-485 transceivers which have excellent performance to meet the needs of the industrial applications. All devices of this family have the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides up to 5kVRMS (60s) of galvanic isolation of and typical ±150-kV/μs CMTI. Isolation barrier improves communication quality by breaking ground loops and reducing noise where there are large differences in ground potential between ports.
The CA-IS3082/88Cx devices support multi-node data communication, and maximum data rate is up to 12Mbps, allowing up to 256 transceivers (loads) on a common bus. The CA-IS3082/88Cx devices are half-duplex transceivers, which could control the driver and receiver enable pins to avoid bus conflicts.

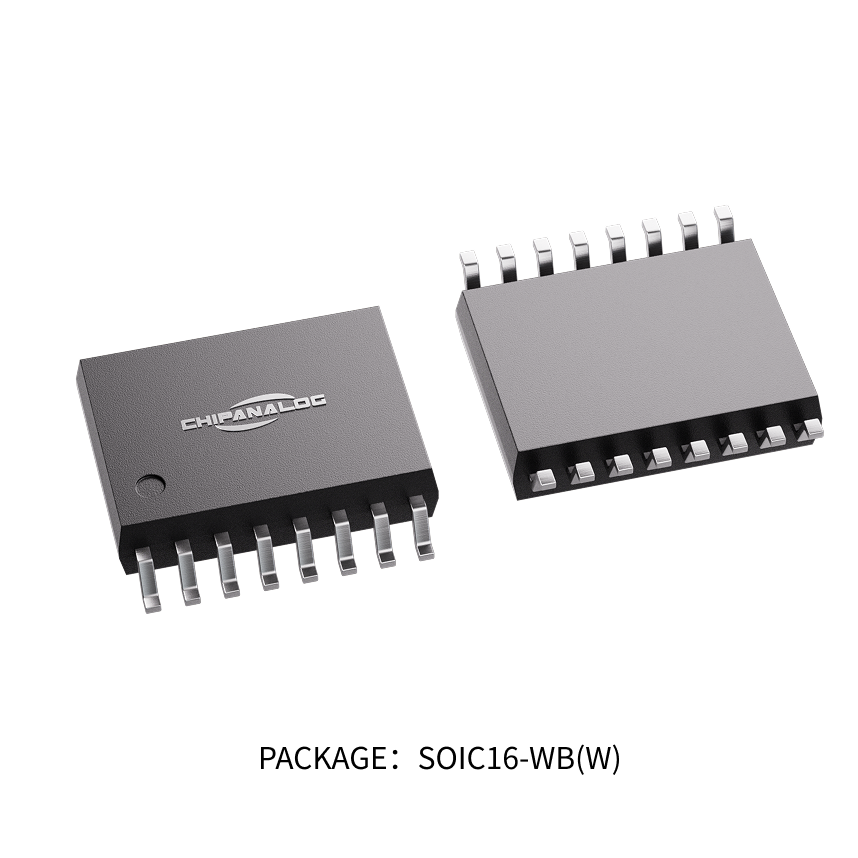

The CA-IS3082/88Cx devices are available in 16-pin widebody SOIC package which is compatible with the industry standard isolated RS-485 transceivers, and specified over extended industrial temperature range of –40°C to +125°C.
-
Features
Meets or Exceeds the Requirements of the TIA/EIA485A Standard
Data Rate
CA-IS3082C: 500kbps
CA-IS3088C: 12Mbps1/8 Unit Load (Up to 256 Bus Nodes)
Logic-Side Supply Voltage
3V to 5.5V
Bus-Side Supply Voltage
3V to 5.5V
Common Mode Range on Bus Pins
–7V to +12V
High CMTI
±150kV/μs (typ)
Bus Pins (A/B) ESD Protection
±20kV (HBM)
Driver with Current Limiter and Thermal Shutdown Protection
Open, Short and Idle Bus Failsafe Protection
Extended Industrial Temperature Range: –40°C to 125°C
16-Pin Wide-Body SOIC Package, Pinouts Compatible With Industrial Standard Isolated RS-485 Transceiver
> 40-Year Lifetime at Rated Isolated Voltage
-
Applications
-
Solar Inverter
-
Industrial Automation
-
Motor Drivers
-
Building Automation
-
Electricity Meters
-
-

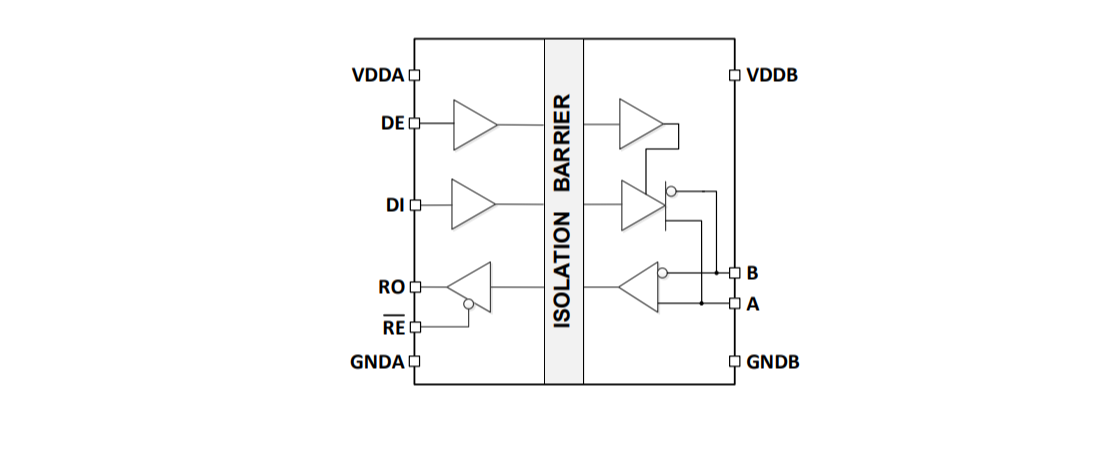

Simplified Functional Diagram
-
Technical Documentation
Category
Title
Last Updated
-
Title: Datasheet
Last Updated: Aug 25,2025
-
